The synthetic resin tile production line adopts 80/156 conical double extruder to produce resin tiles, which have the advantages of smooth and flat board surface, good weather resistance and arbitrary length cutting.
Core advantages:
●The synthetic resin tile production line adopts the process of first-out board and then
●press molding, which has the advantages of simple structure and stable molding.
●The sheet mold of the synthetic resin tile production line adopts a hanger-type mold, and the die mouth is equipped with an oil string device, which is conducive to temperature control and makes the produced sheets more uniform.
●The cutting saw blade of the synthetic resin tile production line adopts imported Kojiro saw blade, which has the advantages of smooth cutting surface and no edge collapse.
●The main machine of the synthetic resin tile production line adopts PLC touch screen frequency conversion control, which is more intuitive and convenient to operate.
●The main machine of the synthetic resin tile production line adopts vacuum exhaust, which is more conducive to improving the quality of the product.
●The main machine of the synthetic resin tile production line adopts metering feeding, which has higher precision and ensures the stability of the product.
●The molding machine of the synthetic resin tile production line is composed of multiple molding molds, which has the advantages of reliable and stable molding.
●The synthetic resin tile production line is outfitted with a dust collection device during the cutting process. This crucial addition plays a significant role in maintaining a cleaner and more hygienic production site. Additionally, a cleaner workspace can contribute to the smooth running of the production line and the overall quality of the synthetic resin tiles being manufactured.
Application range:

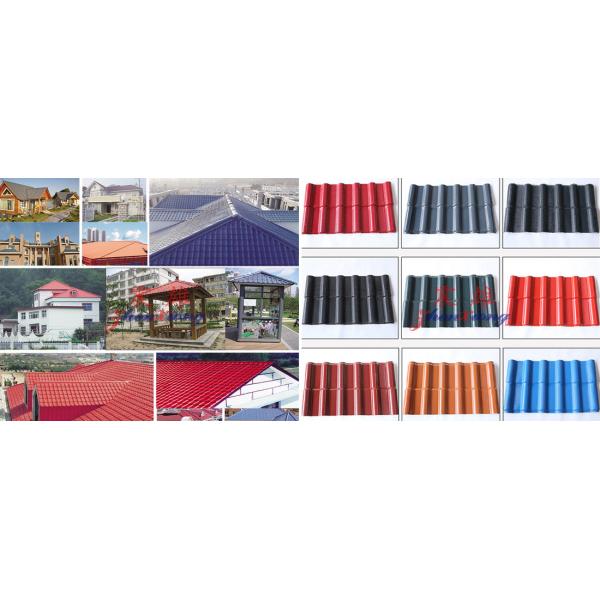

1. This product is applicable to both cast-in-place concrete slab slope roofs and purlin system slope roofs.
2. It is primarily utilized in multi-storey or low-rise residential buildings that demand high-level decoration. Additionally, it can be applied to park buildings, public place corridors, etc. In contrast to common plastic tiles, it boasts excellent weather resistance, color fastness, and a long service life.
3. It is suitable for sloping roofs with appropriate slopes.
| Control System | PLC | Power Consumption | Low |
| Screw Material | 38CrMoAlA | Screw Diameter | 80 / 156 mm |
| Main Motor Power | 55kW | Flow channel form | hanger type |
